Vector VR2
Vector VR2 industrial CNC router range
VR2 brings the machine structure, motion hardware, material control and safety response together with the V-CUT operator system.
CE marked. An Italian Teknomotor CNC spindle and a European extraction package are the standard European proposal. Alternative spindle and extraction options are available. Available as 1313, 1325, 1530, 2030 and 2040 platforms.
- Machine marking
- CE marked
- CNC spindle
- Teknomotor
- Machine control
- V-CUT
- Platform formats
- 5
UK and European markets
Italian, application matched
Developed in Europe
1313 · 1325 · 1530 · 2030 · 2040
Core platform
Vector VR2 CNC router hardware at a glance
Core hardware is consistent across the range, while table size, tool capacity, vacuum arrangement and selected packages depend on the final configuration.

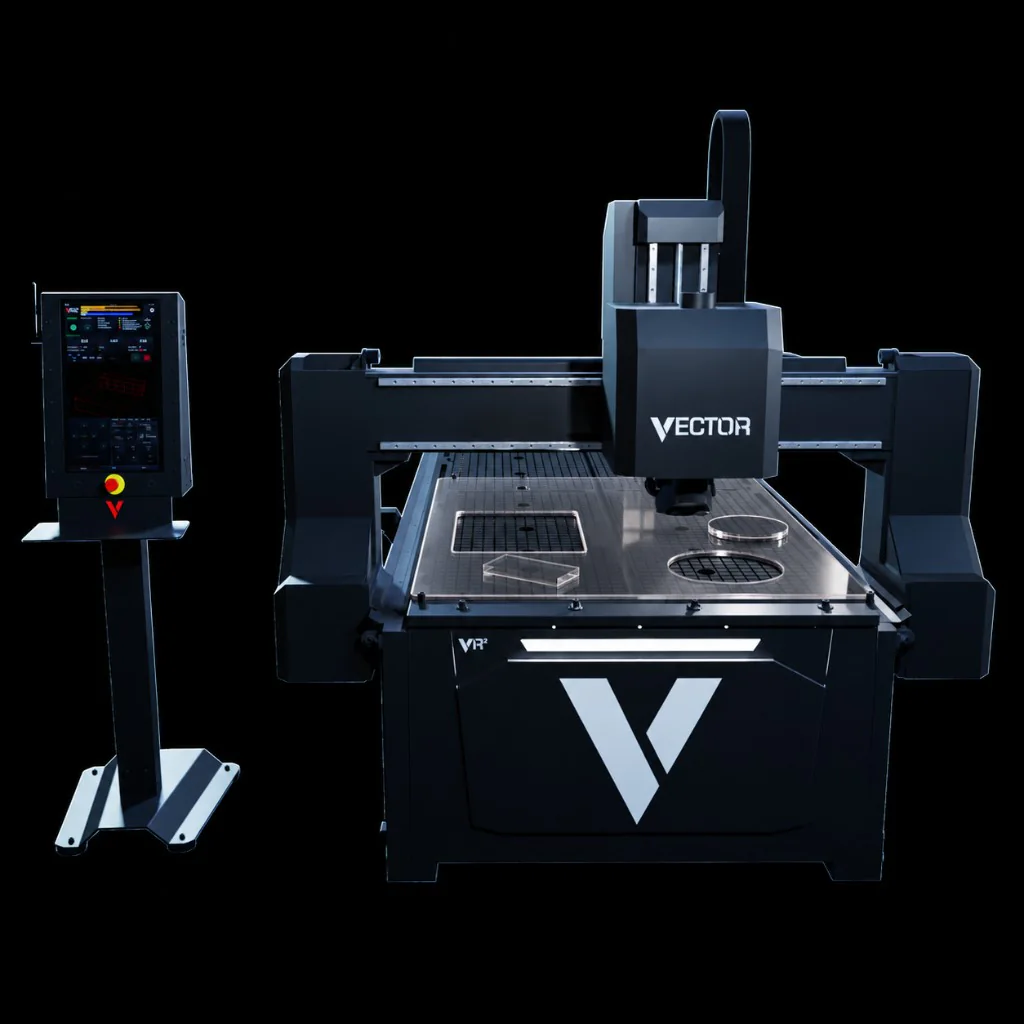

Vector VR2
Vector VR2 with the operator station beside the machine.- Platform formats
- 5
- ATC positions
- 10–14
- Italian CNC spindle
- Teknomotor
- Vacuum pump
- 7.5 kW
1313, 1325, 1530, 2030 and 2040
Configuration dependent
Application matched
One or more, model dependent
Published figures are platform summaries, not a quotation. Working area, spindle, tooling, extraction, vacuum and site services are confirmed for the selected machine.
VR2 range
The Right Size for Your Production
Choose from five table sizes, or speak to us about a custom size. We’ll help you select the right VR2 for your sheet materials, available space and production needs.

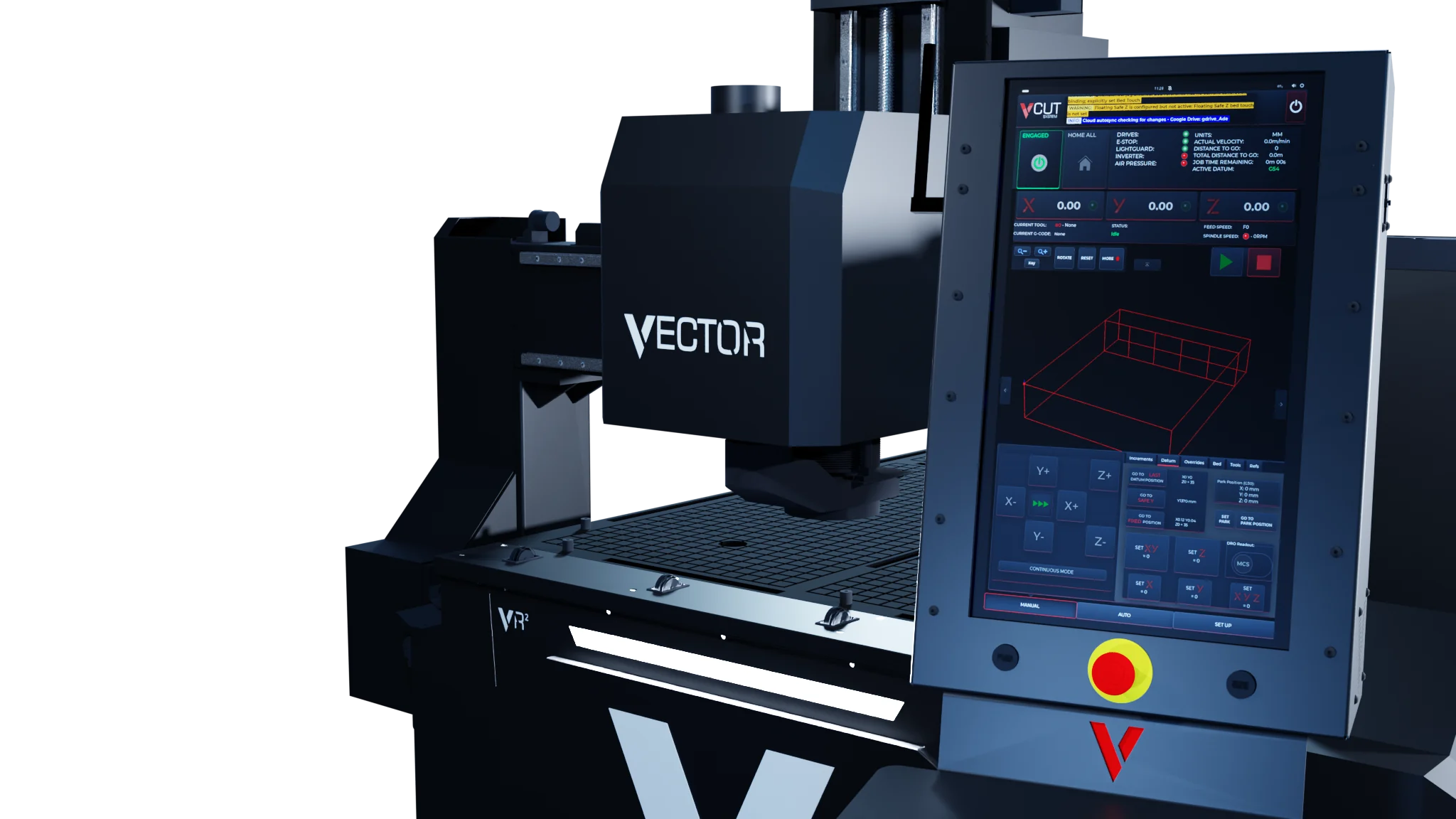

Vector VR2 control and working area
Close view of the V-CUT operator station and Vector VR2 working area.-
1313
1300 × 1300 mm table. A compact format for smaller sheets and components, with less floor space needed than the larger VR2 models.
-
1325
1300 × 2500 mm table. Sized to accommodate standard 8 × 4 ft sheets, making it a practical choice for everyday sheet cutting.
-
1530
1500 × 3000 mm table. Extra width and length for larger sheets and components, giving you more room to arrange parts within each job.
-
2030
2000 × 3000 mm table. A wider working format for larger panels and sheet layouts that need more space across the table.
-
2040
2000 × 4000 mm table. Our largest standard table size, suited to longer sheets, oversized panels and large-format production.
-
Need a Different Size?
If our standard sizes don’t suit your work, talk to us about a custom table size. We’ll review your materials, production requirements and installation space with you.
Control at the cutting table
Better Control of Every Cut

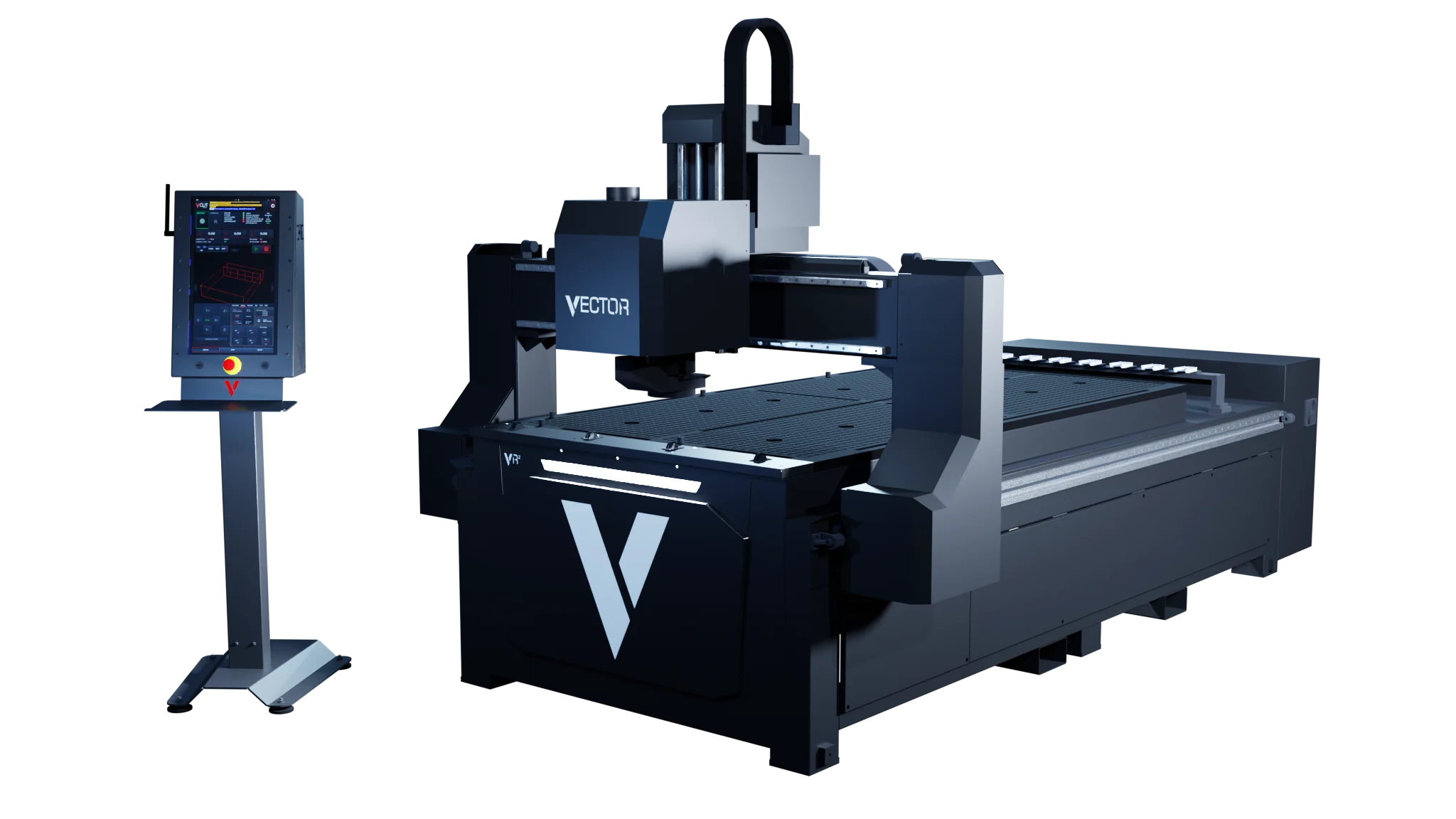

Vector VR2 working area
Three-quarter view of the Vector VR2 with the operator station.-
Vacuum Where You Need It
Select individual vacuum zones directly from V-CUT to match the position and size of your material, helping hold it securely during machining.
-
Automatic Extraction Brush Adjustment
The extraction brush automatically adjusts to the sheet height set in V-CUT, helping maintain dust collection with fewer manual adjustments.
-
FlowControl Air Management
FlowControl supplies cooling air when the process needs it, reducing unnecessary compressed-air use during the job.
-
Tool Cooling and Lubrication
Control tool cooling to suit the cutting task, with additional lubrication available for materials and applications that require it.
ActiveGuard safety system
Rapid Stop. Controlled Restart.
ActiveGuard monitors the machine’s light guard and triggers a rapid, controlled stop if the protective beam is interrupted.
Following a stop, V-CUT helps the operator recover and restart the job using the approved machine procedure, with the machine’s safeguards maintained throughout.

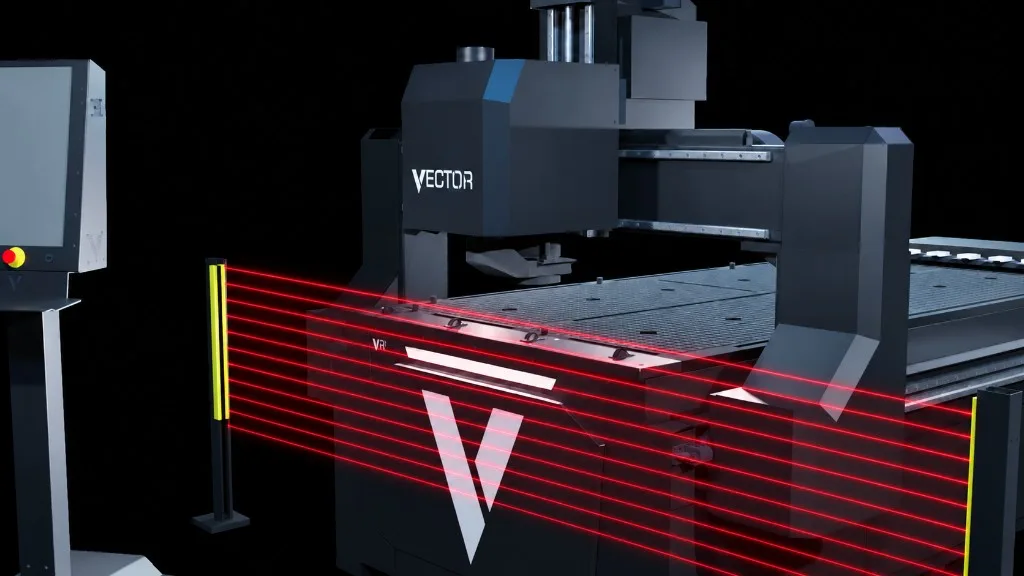

ActiveGuard
Operator station and protected machine area showing the light-guard arrangement.Built for everyday work
Less Manual Setup. More Time Cutting.
From automatic tool changes to straightforward file transfers, the VR2 helps reduce manual tasks throughout the working day. Its European specification pairs an Italian Teknomotor spindle with an extraction package selected to suit your application.
-
Spindle and Extraction Matched to Your Work
The standard European specification includes an Italian Teknomotor spindle and European extraction package, selected for the materials you cut and the work you do. Alternative options are available to suit your requirements and budget.
-
Automatic Tool Changes
A linear tool changer holds 10 or 14 tools, depending on specification, and switches between them automatically during the job. Complete operations using different cutters without stopping to change each tool by hand.
-
Simple File Transfers
Transfer production files through the machine’s supported network connections, with Wi-Fi included and wired LAN available as an option. These connections also support technical support workflows.
-
Accessible Electrical Cabinet
The rear-mounted cabinet brings the main electrical components together, giving trained engineers convenient access for maintenance and servicing.
Operator control
Three Ways to Control the Machine
Run the VR2 from the touch display, the MPG wheel or a wireless keyboard.

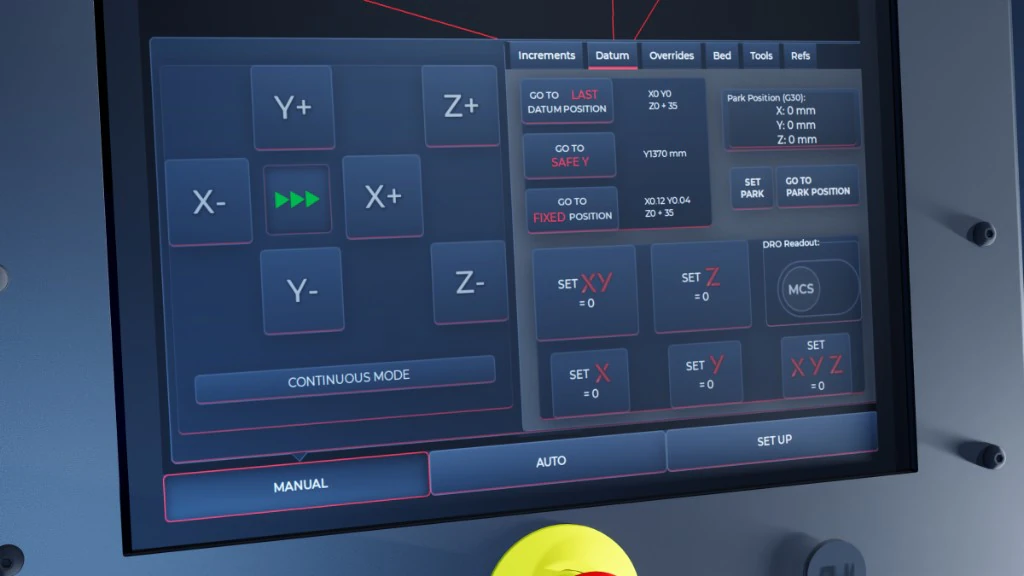

V-CUT touch display
Close view of manual axis controls and datum settings on the Vector VR2 touch display.-
Touch
Control the machine from the V-CUT touch display.
-
MPG Wheel
The manual pulse generator wheel gives hand control of machine movement.
-
Wireless Keyboard
Use a wireless keyboard to control the machine.
Specifications
Specifications and configuration
View the platform datasheetCompare the available table sizes and review the main machine specification. Final tooling, extraction, vacuum and site requirements are confirmed for your application.
Platform formats
| Platform | Table size |
|---|---|
| 1313 | 1300 × 1300 mm |
| 1325 | 1300 × 2500 mm |
| 1530 | 1500 × 3000 mm |
| 2030 | 2000 × 3000 mm |
| 2040 | 2000 × 4000 mm |
| Custom | Available on request |
Configuration
| Item | Detail |
|---|---|
| Control | V-CUT: touch, MPG wheel or wireless keyboard |
| Marking | CE marked |
| Spindle | Italian Teknomotor CNC spindle as standard, matched to the application. Alternative options are available. |
| Extraction | European extraction package as standard, matched to the application. Alternative options are available. |
| Automatic tool changing | 10- or 14-position linear tool changer, depending on configuration |
| Vacuum pump | 7.5 kW, one or more, model dependent |
| Vacuum zones | Selected from V-CUT for the sheet |
| Extraction brush | Follows the configured sheet height |
| Cooling air | FlowControl, demand-led |
| Tool cooling and lubrication | Controllable, for suitable materials |
| File routes | Wi-Fi included. Wired LAN optional |
| Cloud storage | Approved cloud locations through JobVault, alongside local storage, authorised USB and Windows shares |
| Electrical cabinet | Rear-mounted, for trained service access |
| Safety response | ActiveGuard light-guard stop and authorised recovery |
| Nominal site services | 32 A machine, 16 A extraction, 16 A vacuum, 6 bar compressed air |
These figures are platform summaries, not a quotation. Table size, spindle, tooling, extraction, vacuum and site services are confirmed for the selected machine.
Before you specify
Questions customers ask about the VR2
Will the control system prevent every operator mistake?
No. Training and safe setup remain essential. V-CUT provides clear feedback and checks such as ToolCheck, job-boundary preview, elevated path verification and Table Guard to reduce avoidable errors.
Can every user change machine settings?
No. RoleControl separates day-to-day operator access from owner and trained service settings.
What happens if a job is interrupted?
A trained operator can use the controlled SmartRestart and LiveRewind routes available for the known job position, rather than automatically repeating or abandoning the whole sheet.
What workshop services does the VR2 require?
Nominal requirements are 32 A for the machine, 16 A for extraction, 16 A for vacuum and 6 bar compressed air. The final requirements are checked for the selected configuration and customer site before quotation.
